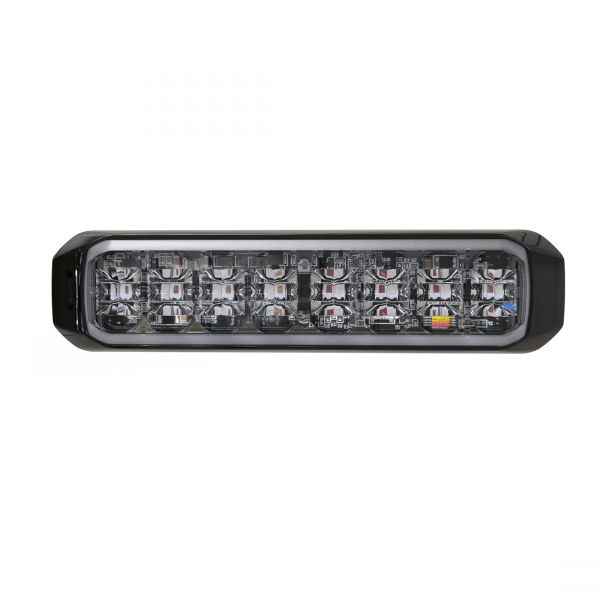

PRODUCT NUMBER: M16

GENERAL SPECIFICATIONS:
• Wide angle output optics produce unrivaled off axis output.
• Dual Color / Multi – Mode capability promotes adaptability.
• Color Setting Modes allow flashing of one color, or both, while also allowing for isolation of one color for steady / cruise / scene / illumination lighting.
• Low profile design promotes clean, streamlined aesthetics.
• Black bezel included with each unit, white and chrome sold separately.
• Self-contained; no external flasher required or use the new BLINKCAST programmer (PC).
• Multi-unit synchronization in simultaneous or alternating flash
• UV infused lenses are ultra-resistant to yellowing / cracking due to harsh weather / road conditions
• Fully Weatherproof and vibration resistant design for external or internal use
• Solid aluminum base facilitates efficient heat dissipation while also maximizing durability
• Non-volatile memory recalls last flash pattern used at power up
• Reverse polarity and load dump protection

FEATURES:
• Compliance: SAE J595 Class 1; SAE J845 Class 1; CA Title 13, IPX7; CISPRR 25
• LED Count: 16 (interleaved 8×8)
• Flash Patterns: 30
• Operating Voltage: 12~24VDC
• Avg. Current: 0.52A @12VDC / 0.26A @24VDC
• Max. Current: 1.04A @12VDC / 0.52A @24VDC
• Avg. Power: 6.24 Watts
• Max. Power: 12.48 Watts
• Wires: Black – GND: (9.84” / 20AWG)
   –   Red – Warning Memory 1: (9.84” / 20AWG)
   –   White – Warning Memory 2: (9.84” / 20AWG)
   –   Yellow – Flash Patterns & Sync: (29.84” / 20AWG)
• Fuse Rating: 2A
• Synchronization: Up to 20 units
• LED Color: Amber, Blue, Green, Red, White (most combinations of any 2 colors)
• Lens Color: Clear
• Storage Temp.: -40°F to +167°F
• Working Temp.: -30°F to +149°F
• Warranty: 5 Years



If Color Combination wanted not listed Give us a call!
